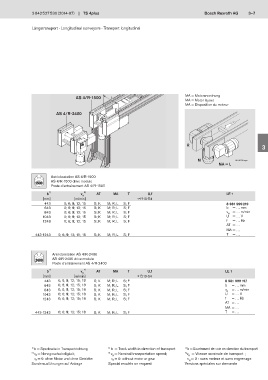

3 842 527 530 (2014-07) TS 4plus Bosch Rexroth AG 3–7

Längstransport · Longitudinal conveyors · Transport longitudinal

AS 4/R-1500 b MA = Motoranordnung
MA = Motor layout
MA = Disposition du moteur
1
AS 4/R-2400

2

R
3

M 00116761.eps
MA = L
Strecke_TS4plus.eps 4
Antriebsstation AS 4/R-1500
AS 4/R-1500 drive module
Poste d’entraînement AS 4/R-1500 5
b 1) v 2) AT MA T U,f LE 1
N
[mm] [m/min] F210-54
443 0; 6; 9; 12; 15 S; K M; R; L S; F 8 981 999 219
643 0; 6; 9; 12; 15 S; K M; R; L S; F b = … mm 6

843 0; 6; 9; 12; 15 S; K M; R; L S; F v = … m/min
N
1043 0; 6; 9; 12; 15 S; K M; R; L S; F U = … V

1243 0; 6; 9; 12; 15 S; K M; R; L S; F f = … Hz
AT = … 7
MA = …
443-1243 0; 6; 9; 12; 15; 18 S; K M; R; L S; F T = …
8

Antriebsstation AS 4/R-2400
AS 4/R-2400 drive module
Poste d’entraînement AS 4/R-2400
9
b 1) v N 2) AT MA T U,f LE 1
[mm] [m/min] F210-54
443 0; 6; 9; 12; 15; 18 S; K M; R; L S; F 8 981 999 197
643 0; 6; 9; 12; 15; 18 S; K M; R; L S; F b = … mm 10

843 0; 6; 9; 12; 15; 18 S; K M; R; L S; F v = … m/min
N
1043 0; 6; 9; 12; 15; 18 S; K M; R; L S; F U = … V

1243 0; 6; 9; 12; 15; 18 S; K M; R; L S; F f = … Hz
AT = …
MA = … 11
443-1243 0; 6; 9; 12; 15; 18 S; K M; R; L S; F T = …
12

1) b = Spurbreite in Transportrichtung 1) b = Track width in direction of transport 1) b = Ecartement de voie en direction du transport

2) = Nenngeschwindigkeit; 2) v = Nominal transportation speed; 2) v = Vitesse nominale de transport ;
N N
v N
= 0: ohne Motor und ohne Getriebe = 0: without motor or gear v = 0 : sans moteur et sans engrenage
v N v N N
Sonderausführungen auf Anfrage Special models on request Versions spéciales sur demande
