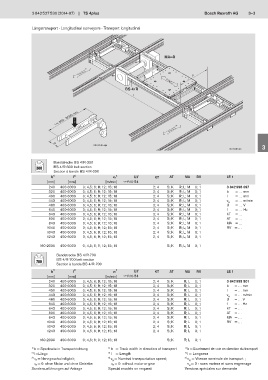

3 842 527 530 (2014-07) TS 4plus Bosch Rexroth AG 3–3

Längstransport · Longitudinal conveyors · Transport longitudinal

MA=R

b

BS 4/R
l

1
l = 400 - 6000 mm

2

b
00112501.eps 3
00112581.eps
Bandstrecke BS 4/R-300
BS 4/R-300 belt section 4
Section à bande BS 4/R-300
b 1) l 2) vN 3 U,f KT AT MA RV LE 1
[mm] [mm] [m/min] F210-54
240 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L: M 0; 1 3 842 998 097 5
320 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1 b = … mm
400 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1 l = … mm
443 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1 v = … m/min
N
480 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1 U = … V 6
640 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1 f = … Hz
643 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1 KT = …
800 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1 AT = …
843 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1 MA = …
1040 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1 RV = … 7
1043 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1
1243 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L; M 0; 1
160-2000 400-6000 0; 4,5; 6; 9; 12; 15; 18 S; K R; L; M 0; 1 8

Bandstrecke BS 4/R-700
BS 4/R-700 belt section
Section à bande BS 4/R-700 9

b 1) l 2) vN 3 U,f KT AT MA RV LE 1
[mm] [mm] [m/min] F210-54
240 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 3 842 999 901
320 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 b = … mm 10
400 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 l = … mm
443 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 v = … m/min
N
480 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 U = … V
640 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 f = … Hz 11
643 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 KT = …
800 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 AT = …
843 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 MA = …
1040 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 RV = …
1043 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1 12
1243 400-6000 0; 4,5; 6; 9; 12; 15; 18 2; 4 S; K R; L 0; 1

160-2000 400-6000 0; 4,5; 6; 9; 12; 15; 18 S; K R; L 0; 1
1) b = Spurbreite in Transportrichtung 1) b = Track width in direction of transport 1) b = Ecartement de voie en direction du transport

2) l =Länge 2) l = Length 2) l = Longueur
3) = Nenngeschwindigkeit; 3) v = Nominal transportation speed; 3) v = Vitesse nominale de transport ;
N N
v N
= 0: ohne Motor und ohne Getriebe = 0: without motor or gear v = 0 : sans moteur et sans engrenage
v N v N N
Sonderausführungen auf Anfrage Special models on request Versions spéciales sur demande
