TÜREN- UND FENSTERSYSTEM | DOOR AND WINDOW SYSTEMS

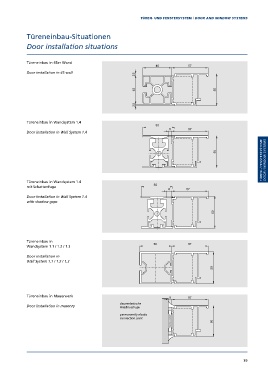

Türeneinbau-Situationen
Door installation situations
Türeneinbau in 45er Wand
Door installation in 45 wall
Türeneinbau in Wandsystem 1.4
Door installation in Wall System 1.4
TÜREN- / FENSTERSYSTEME DOOR / WINDOW SYSTEMS
Türeneinbau in Wandsystem 1.4
mit Schattenfuge
Door installation in Wall System 1.4
with shadow gaps
Türeneinbau in
Wandsystem 1.1 / 1.2 / 1.3
Door installation in
Wall System 1.1 / 1.2 / 1.3
Türeneinbau in Mauerwerk
dauerelastische
Door installation in masonry Anschlussfuge
permanently elastic
connection joint
