3-8 TS 2plus 8.0 | Längstransport
Bandstrecke BS 2/...

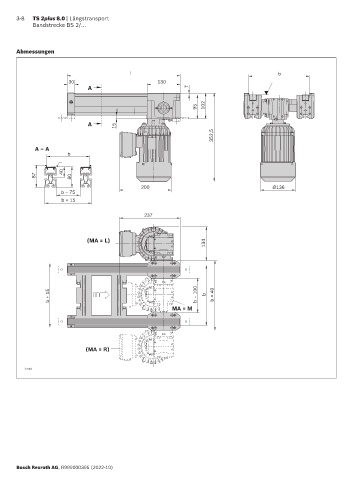

Abmessungen
l b
30 130
A 7
95 102
A 15
352,5
A – A
b
40
87 80
200 Ø136
b – 75
b + 15
237
(MA = L)
134
b + 15 b – 100 b b + 40
MA = M
(MA = R)
37544
