P. 247
Längstransport | TS 2plus 8.0 3-155

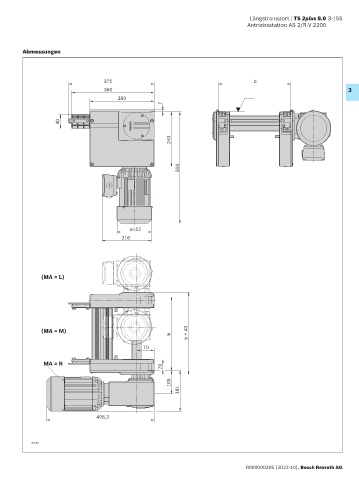

Antriebsstation AS 2/R-V-2200
Abmessungen
375 b
360 3
280
7
40
240
504
ø152
216
(MA = L)
(MA = M)
b b + 40
70
MA = R
70
105
181
498,3
37158
R999000395 (2022-10), Bosch Rexroth AG
