3-152 TS 2plus 8.0 | Längstransport
Antriebsstation AS 2/R-V-1200

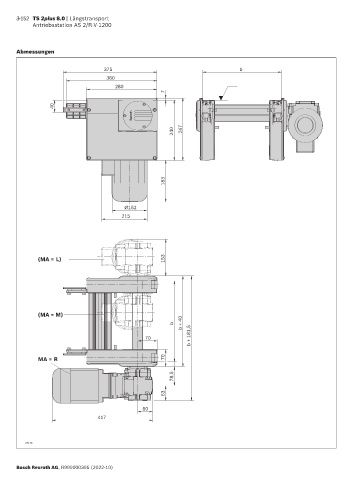

Abmessungen
375 b
360
280
7
40
240 247
183
Ø152
215
(MA = L) 153
(MA = M)
b + 40
b
70 b + 181,5
MA = R 70
78,5
63
60
417
37173
