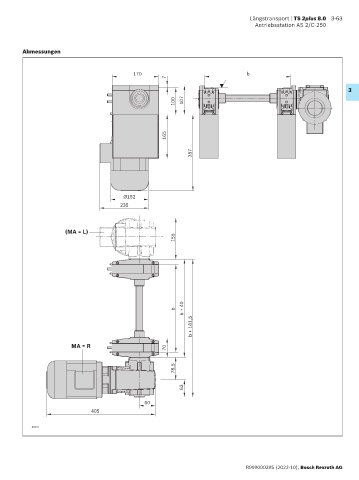

Längstransport | TS 2plus 8.0 3-63
Antriebsstation AS 2/C-250
Abmessungen
170 b
7
3
100 107
165
287
Ø152
235
(MA = L)
155
b + 40
b
b + 181,5
MA = R 70
78,5
63
60
405
40601
