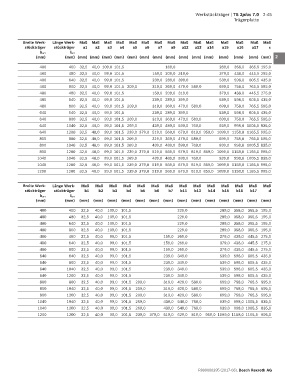

Werkstückträger | TS 2plus 7.0 2-45
Trägerplatte

Breite Werk- Länge Werk- Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß 1
stück träger stück träger a1 a2 a3 a4 a5 a6 a7 a9 a12 a13 a14 a15 a16 a17 c
b WT l WT
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) 2
400 400 32,5 40,0 109,0 101,5 169,0 289,0 358,0 365,5 195,0 3
400 480 32,5 40,0 99,0 101,5 159,0 209,0 319,0 379,0 438,0 445,5 295,0
400 640 32,5 40,0 99,0 101,5 239,0 289,0 399,0 539,0 598,0 605,5 435,0 4
400 800 32,5 40,0 99,0 101,5 209,0 319,0 369,0 479,0 589,0 699,0 758,0 765,5 595,0
480 480 32,5 40,0 99,0 101,5 159,0 209,0 319,0 379,0 438,0 445,5 275,0
480 640 32,5 40,0 99,0 101,5 239,0 289,0 399,0 539,0 598,0 605,5 435,0 5
480 800 32,5 40,0 99,0 101,5 209,0 319,0 369,0 479,0 589,0 699,0 758,0 765,5 595,0
640 640 32,5 40,0 99,0 101,5 239,0 289,0 399,0 539,0 598,0 605,5 435,0 6
640 800 32,5 40,0 99,0 101,5 209,0 319,0 369,0 479,0 589,0 699,0 758,0 765,5 595,0
640 1040 32,5 40,0 99,0 101,5 269,0 439,0 489,0 599,0 769,0 939,0 998,0 1005,5 835,0 7
640 1200 32,5 40,0 99,0 101,5 239,0 379,0 519,0 569,0 679,0 819,0 959,0 1099,0 1158,0 1165,5 995,0
800 800 32,5 40,0 99,0 101,5 209,0 319,0 369,0 479,0 589,0 699,0 758,0 765,5 595,0 8
800 1040 32,5 40,0 99,0 101,5 269,0 439,0 489,0 599,0 769,0 939,0 998,0 1005,5 835,0
800 1200 32,5 40,0 99,0 101,5 239,0 379,0 519,0 569,0 679,0 819,0 859,0 1099,0 1158,0 1165,5 995,0 9
1040 1040 32,5 40,0 99,0 101,5 269,0 439,0 489,0 599,0 769,0 939,0 998,0 1005,5 835,0
1040 1200 32,5 40,0 99,0 101,5 239,0 379,0 519,0 569,0 679,0 819,0 859,0 1099,0 1158,0 1165,5 995,0 10
1200 1200 32,5 40,0 99,0 101,5 239,0 379,0 519,0 569,0 679,0 819,0 859,0 1099,0 1158,0 1165,5 995,0
11

Breite Werk- Länge Werk- Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß Maß
stück träger stück träger b1 b2 b3 b4 b5 b6 b7 b11 b13 b14 b15 b16 b17 d 12
b WT l WT
(mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)
13
400 400 32,5 40,0 109,0 101,5 229,0 289,0 358,0 365,5 195,0
400 480 32,5 40,0 109,0 101,5 229,0 289,0 358,0 365,5 195,0 14
400 640 32,5 40,0 109,0 101,5 229,0 289,0 358,0 365,5 195,0
400 800 32,5 40,0 109,0 101,5 229,0 289,0 358,0 365,5 195,0 15
480 480 32,5 40,0 99,0 101,5 159,0 269,0 379,0 438,0 445,5 275,0
480 640 32,5 40,0 99,0 101,5 159,0 269,0 379,0 438,0 445,5 275,0 16
480 800 32,5 40,0 99,0 101,5 159,0 269,0 379,0 438,0 445,5 275,0
640 640 32,5 40,0 99,0 101,5 239,0 349,0 539,0 598,0 605,5 435,0 17
640 800 32,5 40,0 99,0 101,5 239,0 349,0 539,0 598,0 605,5 435,0
640 1040 32,5 40,0 99,0 101,5 239,0 349,0 539,0 598,0 605,5 435,0 18
640 1200 32,5 40,0 99,0 101,5 239,0 349,0 539,0 598,0 605,5 435,0
800 800 32,5 40,0 99,0 101,5 209,0 319,0 429,0 589,0 699,0 758,0 765,5 595,0 19
800 1040 32,5 40,0 99,0 101,5 209,0 319,0 429,0 589,0 699,0 758,0 765,5 595,0
800 1200 32,5 40,0 99,0 101,5 209,0 319,0 429,0 589,0 699,0 758,0 765,5 595,0 20
1040 1040 32,5 40,0 99,0 101,5 269,0 439,0 549,0 769,0 939,0 998,0 1005,5 835,0
1040 1200 32,5 40,0 99,0 101,5 269,0 439,0 549,0 769,0 939,0 998,0 1005,5 835,0 21
1200 1200 32,5 40,0 99,0 101,5 239,0 379,0 519,0 629,0 819,0 959,0 1099,0 1158,0 1165,5 995,0

22

23

24

R999000395 (2017-08), Bosch Rexroth AG
