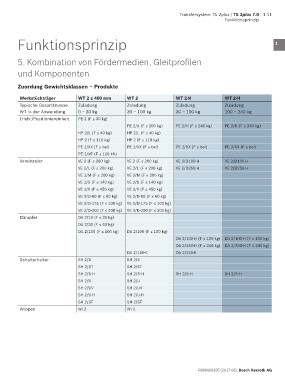

Transfersystem TS 2plus | TS 2plus 7.0 1-11
Funktionsprinzip

Funktionsprinzip 1

5. Kombination von Fördermedien, Gleitprofilen

und Komponenten

Zuordung Gewichtsklassen – Produkte

Werkstückträger WT 2 ≤ 400 mm WT 2 WT 2-H WT 2-H
Typische Gesamtmasse Zuladung Zuladung Zuladung Zuladung
WT in der Anwendung 0 ‒ 30 kg 30 ‒ 100 kg 30 ‒ 100 kg 100 ‒ 240 kg
(Hub-)Positioniereinheit PE 2 (F ≤ 30 kg)
PE 2/X (F ≤ 100 kg) PE 2/H (F ≤ 240 kg) PE 2/H (F ≤ 240 kg)
HP 2/L (F ≤ 40 kg) HP 2/L (F ≤ 40 kg)
HP 2 (F ≤ 110 kg) HP 2 (F ≤ 110 kg)
PE 2/XX (F ≤ bel) PE 2/XX (F ≤ bel) PE 2/XX (F ≤ bel) PE 2/XX (F ≤ bel)
PE 2/XP (F ≤ 100 kN)
Vereinzeler VE 2 (F ≤ 200 kg) VE 2 (F ≤ 200 kg) VE 2/D100-H VE 2/D100-H
VE 2/L (F ≤ 200 kg) VE 2/L (F ≤ 200 kg) VE 2/D250-H VE 2/D250-H
VE 2/M (F ≤ 200 kg) VE 2/M (F ≤ 200 kg)
VE 2/S (F ≤ 140 kg) VE 2/S (F ≤ 140 kg)
VE 2/X (F ≤ 450 kg) VE 2/X (F ≤ 450 kg)
VE 2/D-60 (F ≤ 60 kg) VE 2/D-60 (F ≤ 60 kg)
VE 2/D-175 (F ≤ 100 kg) VE 2/D-175 (F ≤ 100 kg)
VE 2/D-200 (F ≤ 200 kg) VE 2/D-200 (F ≤ 200 kg)
Dämpfer DA 2/10 (F ≤ 20 kg)
DA 2/30 (F ≤ 60 kg)
DA 2/100 (F ≤ 100 kg) DA 2/100 (F ≤ 100 kg)
DA 2/100-H (F ≤ 100 kg) DA 2/100-H (F ≤ 100 kg)
DA 2/250-H (F ≤ 240 kg) DA 2/250-H (F ≤ 240 kg)
DA 2/150-E DA 2/150-E
Schalterhalter SH 2/S SH 2/S
SH 2/ST SH 2/ST
SH 2/S-H SH 2/S-H SH 2/S-H SH 2/S-H
SH 2/U SH 2/U
SH 2/UV SH 2/UV
SH 2/U-H SH 2/U-H
SH 2/SF SH 2/SF
Wippen WI 2 WI 2

R999000395 (2017-08), Bosch Rexroth AG
