Quertransport | TS 2plus 8.0 5-103
Rollenstrecke RS 2/H

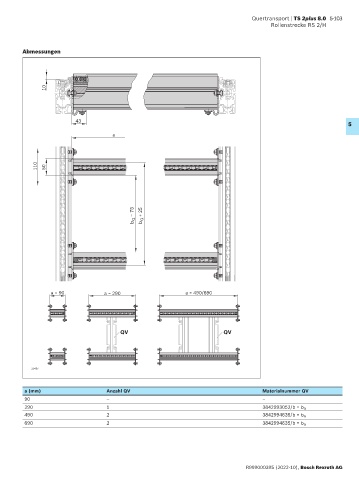

Abmessungen
10
43
5
a
110 50
b – 75 Q b + 25 Q
a = 90 a = 290 a = 490/690
QV QV
29407
a (mm) Anzahl QV Materialnummer QV
90 ‒ ‒
290 1 3842993052/b = b Q
490 2 3842994635/b = b Q
690 2 3842994635/b = b Q
