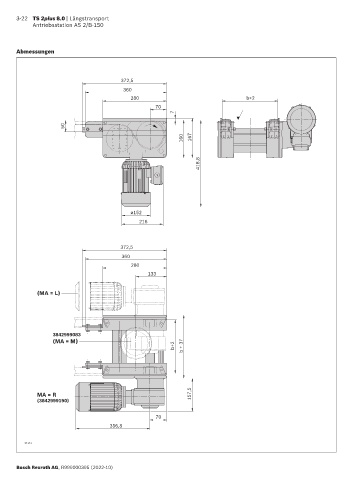

3-22 TS 2plus 8.0 | Längstransport
Antriebsstation AS 2/B-150
Abmessungen
372,5
360
280 b+2
70
7
50
160 167
418,8
ø152
216
372,5
360
280
133
(MA = L)
3842999083
(MA = M)
b+2 b + 37
MA = R 157,5
(3842999190)
70
356,8
37171
