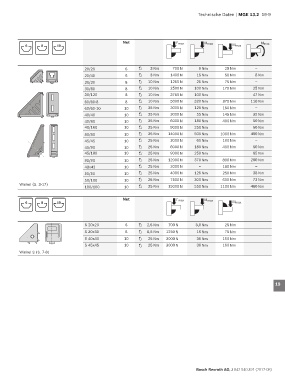

Technische Daten | MGE 13.2 19-9

Nut Fmax Mmax Mmax 1
6 8 10 Mmax

2

20/20 6 3 Nm 700 N 6 Nm 25 Nm – 3
20/40 6 3 Nm 1400 N 15 Nm 50 Nm 8 Nm
30/30 8 10 Nm 1250 N 25 Nm 75 Nm – 4
30/60 8 10 Nm 2500 N 100 Nm 170 Nm 25 Nm
30/120 8 10 Nm 3750 N 100 Nm 47 Nm 5
60/60-8 8 10 Nm 5000 N 320 Nm 370 Nm 110 Nm
60/60-10 10 25 Nm 3000 N 125 Nm 150 Nm – 6
40/40 10 25 Nm 3000 N 55 Nm 145 Nm 35 Nm
40/80 10 25 Nm 6000 N 180 Nm 400 Nm 60 Nm 7
40/160 10 25 Nm 9000 N 250 Nm 60 Nm
80/80 10 25 Nm 14000 N 500 Nm 1000 Nm 400 Nm 8
45/45 10 25 Nm 3000 N 60 Nm 160 Nm –
45/90 10 25 Nm 6000 N 180 Nm 400 Nm 60 Nm 9
45/180 10 25 Nm 9000 N 250 Nm 65 Nm
90/90 10 25 Nm 12000 N 370 Nm 800 Nm 200 Nm 10
43x42 10 25 Nm 2000 N – 160 Nm –
50/50 10 25 Nm 4000 N 125 Nm 250 Nm 38 Nm 11
50/100 10 25 Nm 7500 N 300 Nm 600 Nm 73 Nm
Winkel (S. 3-17)
100/100 10 25 Nm 15000 N 550 Nm 1100 Nm 480 Nm
12
Nut Fmax Mmax
6 8 10 Mmax 13

14
S 20x20 6 2,5 Nm 700 N 3,6 Nm 25 Nm
S 30x30 8 8,5 Nm 1250 N 16 Nm 75 Nm 15
S 40x40 10 25 Nm 3000 N 36 Nm 160 Nm
S 45x45 10 25 Nm 3000 N 36 Nm 160 Nm 16
00126457
Winkel S (S. 7-8)
17

18

19

20

21
