7–4 Bosch Rexroth AG TS 2pv 2.2 3 842 540 431 (2016-03)

Technische Daten

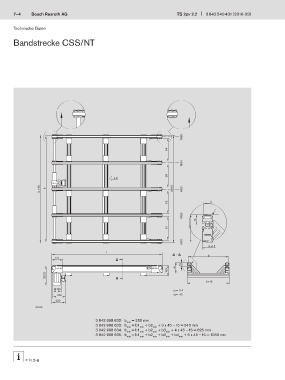

Bandstrecke CSS/NT

MS5

b4

MS4

b3

b +30 b b+15 MS3

b2 b

MS2
a 2
b1 a 1

MS1
b+15
l
A - A b
171 A
a 2
a 1
159
332,5 A
b+15
Ø 136 a 1= 114
200 a 2= 43
220
00136149

3 842 998 632: b min = 255 mm
3 842 998 633: b min = b1 min + b2 min + 3 x 45 – 15 = 540 mm
3 842 998 634: b min = b1 min + b2 min + b3 min + 4 x 45 – 15 = 825 mm
3 842 998 635: b min = b1 min + b2 min + b3 min + b4 min + 5 x 45 – 15 = 1050 mm

 2-6
